More Results from the Magnetic Induction Equation

I used my IDL program "" to plot the results obtained at time t=0.00, t=0.003, t=0.006 and t=0.009 .
I opted to graph the results at the isosurface level 0.6 as this gave reasonable results throughtout the whole time period.

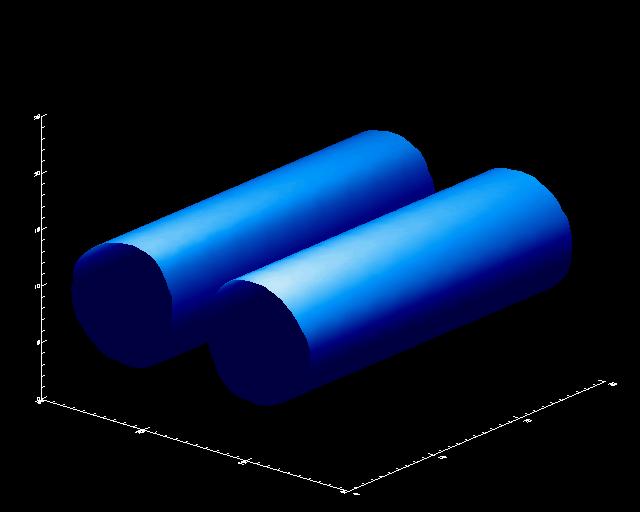

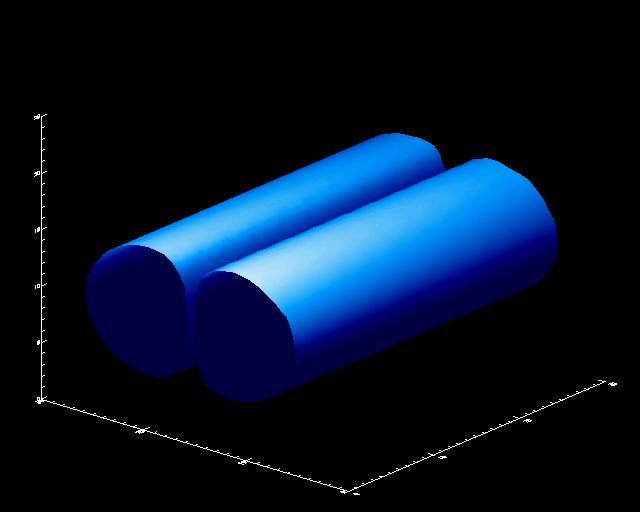

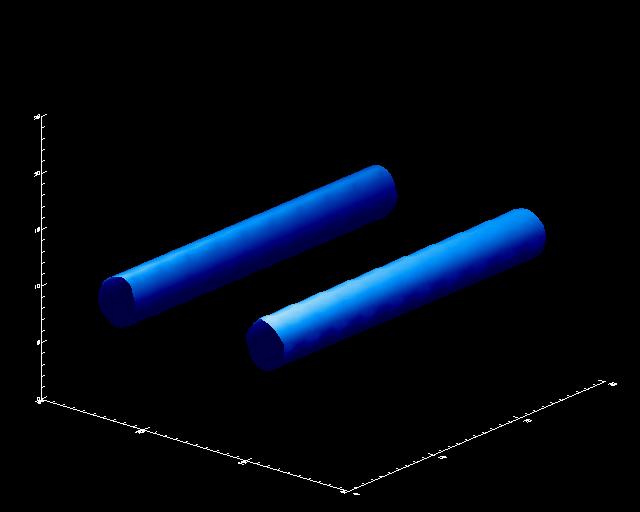

Here are the results when I didn't impose a flow at all, i.e v=(0,0,0). As we can see, the tubes are diffused, but no advection occurs.

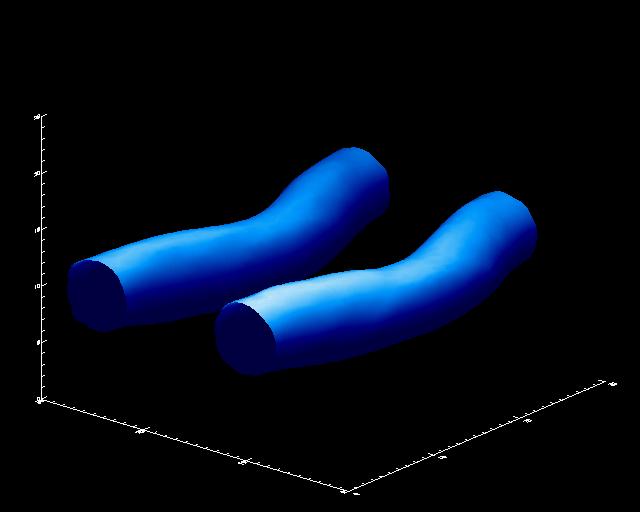

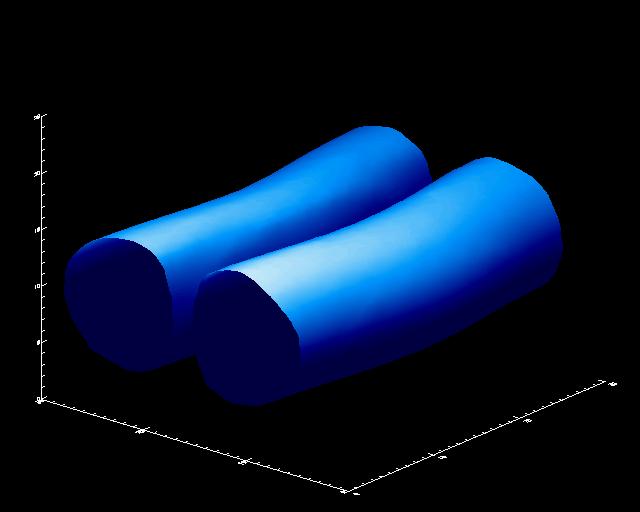

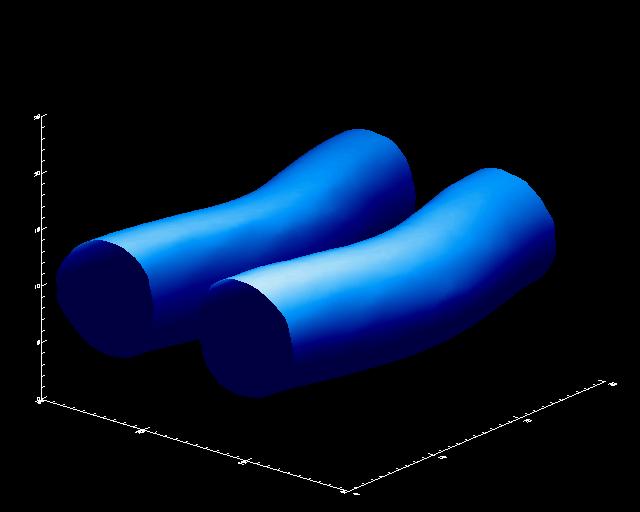

Here are the results when I ran my Fortran program with v=(0,cos(2*pi*x),0).

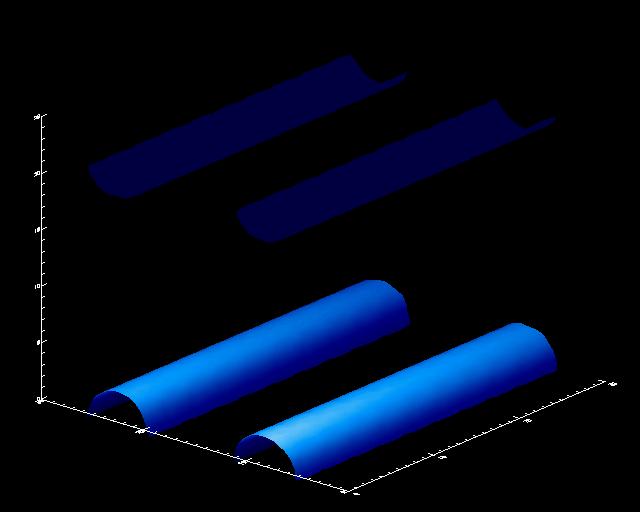

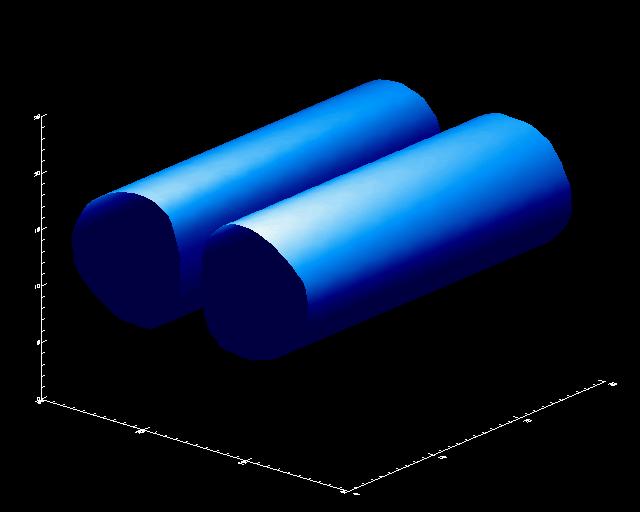

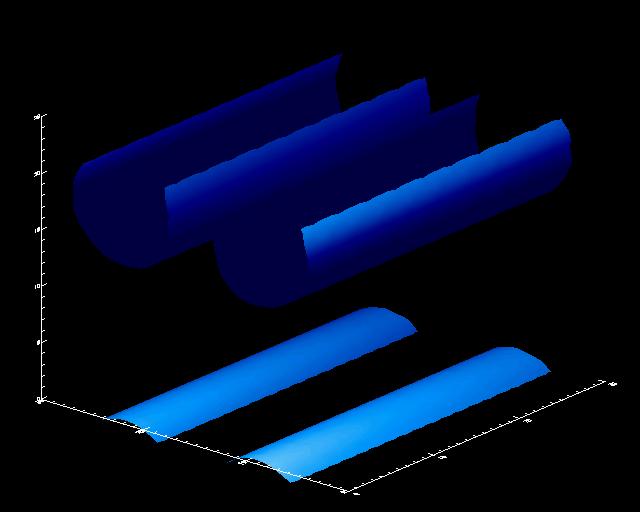

Here, I set v=(0,0,6).

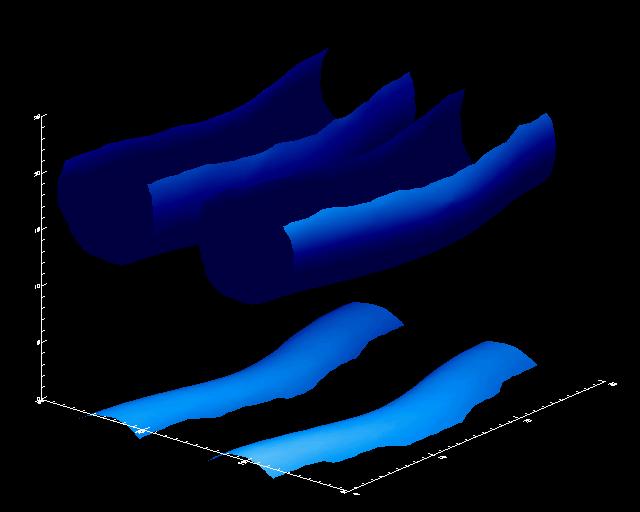

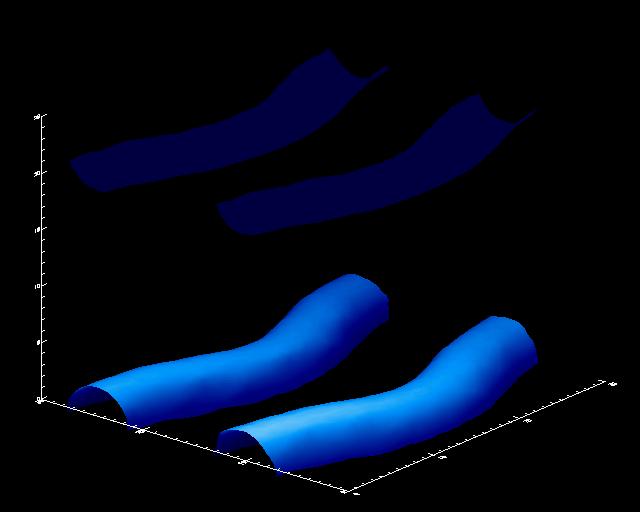

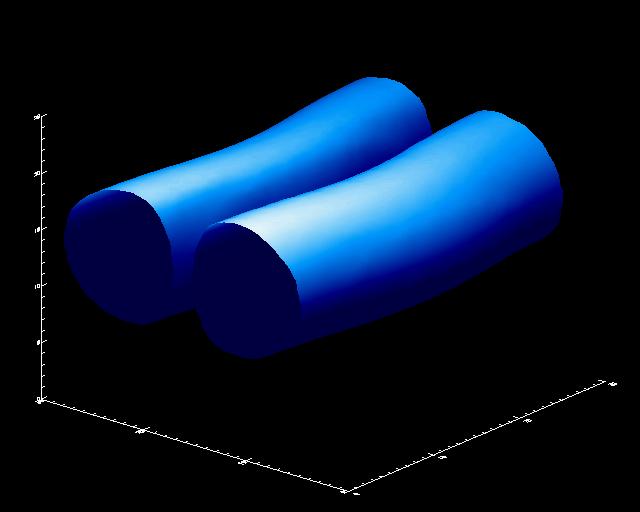

The results below are a combination of the 2 above, i.e. v=(0,cos(2*pi*x),6).


Click here to see the third picture above enlarged and compared with the same image but with 30 meshpoints.

Finally, I have imposed a flow along the cylinders. Clearly, I didn't expect to see the cylinders move, since their shape is uniform in the direction of the motion; I wanted to plot this anyway, as a check that my periodic boundary conditions work in the y-z plane.

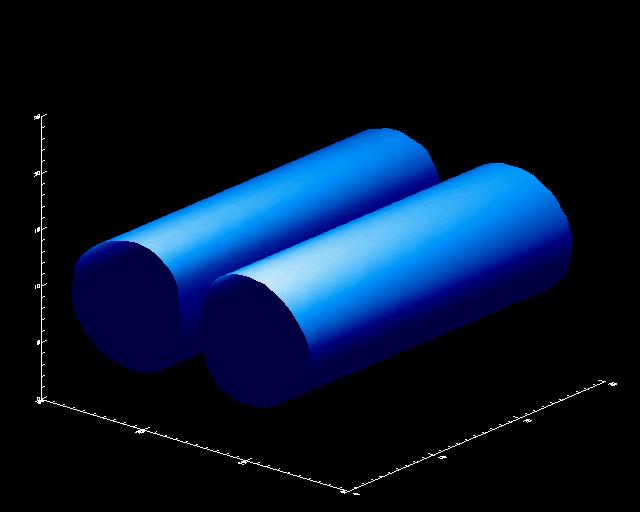

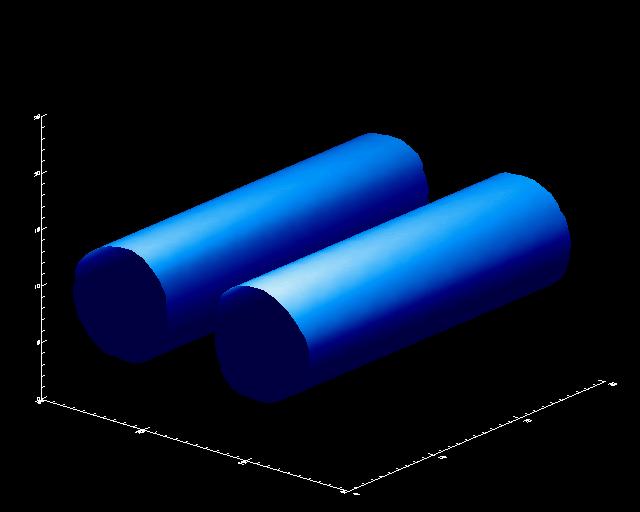

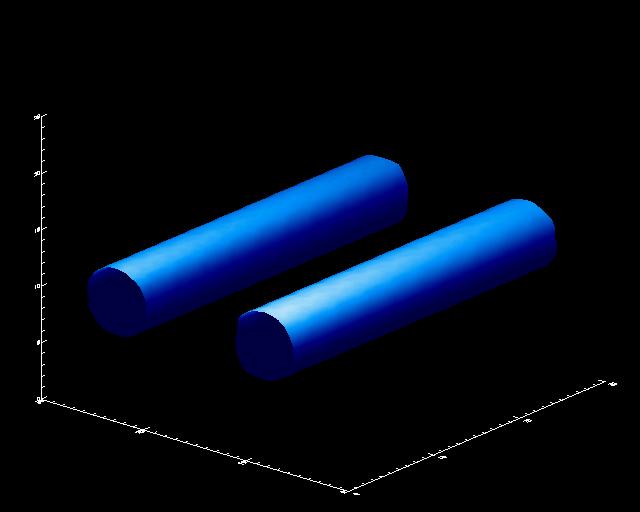

I used the flow v=(3,0,0).
